this is a simple and inexpensive logic probe, which uses readily available components.
|
| 2
|
principle of operation :

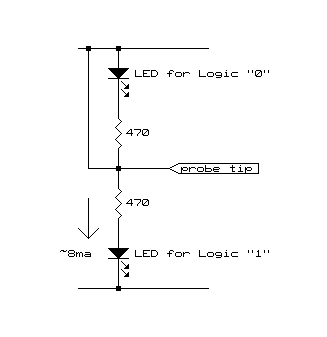

when the probe is brought to logic "0", current passes through the top led through the higher 470-ohm resistor.
go to top next
|
|
|
| 3
|
principle of operation :
when the probe is brought to logic "1", current passes through the top led through the higher 470-ohm resistor.
go to top prev
|
|
|
| 4
|
the maximum design current of 10 milliamps through each led is assured by the 470-ohm resistor.
|
